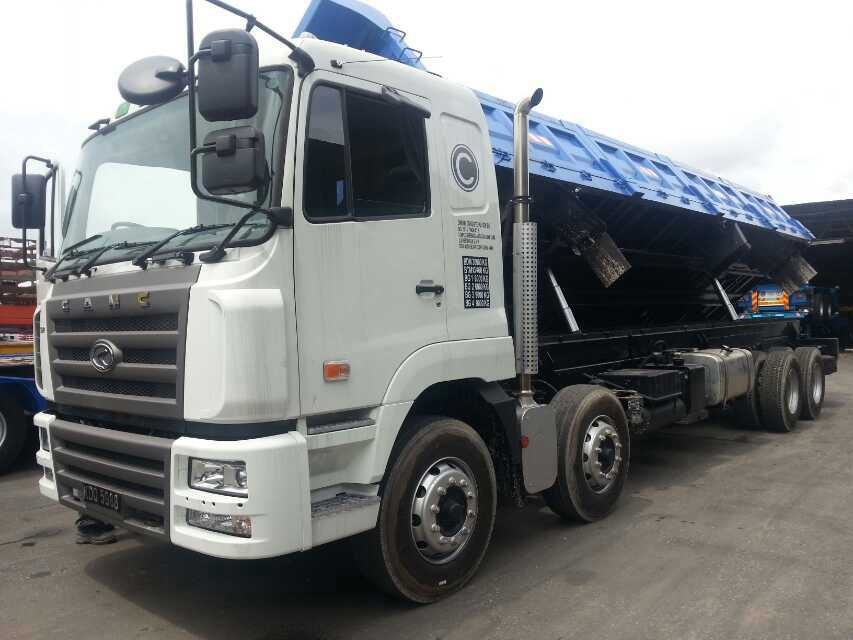

for more informationCAMC 8 x 4 Side Tipping Tipper

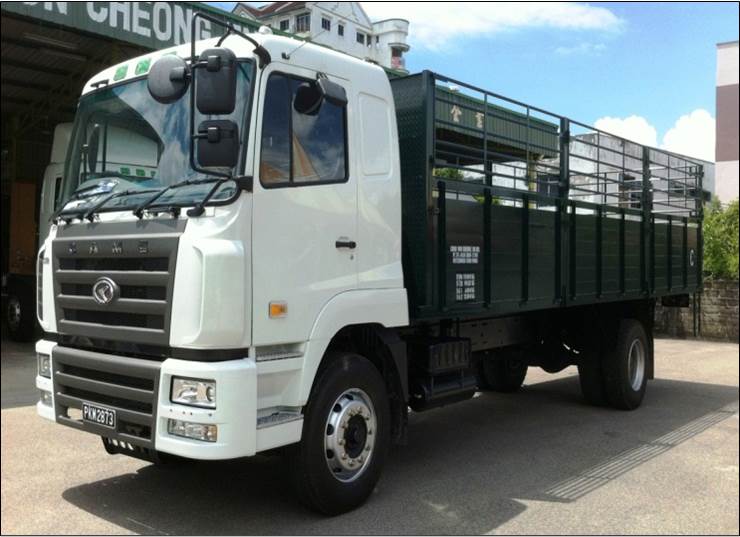

CAMC 4 x 2 General Timber Cargo
CAMC 6 x 4 Mid Lift
Rear-Tipping Tipper
CAMC 8 x 4 Front Lift
Rear-Tipping Tipper
Specifications of CAMC Rigid Body-Tipper / Cargo Truck
Drive
6 x 4
8 x 4
8 x 4
Make
H08 CAMC
Model Number
FS350HR410
FW380HR501
FW350HR530
Dimensions
Wheel Base(mm)
4100 + 1350
Wheel Track(mm)
Front 2065
Rear 1860
Overhang(mm)
Front 1460
Rear 1712
4100 + 1350
Wheel Track(mm)
Front 2065
Rear 1860
Overhang(mm)
Front 1460
Rear 1712
Wheel Base(mm)
1940 + 5010 + 1350
Wheel Track(mm)
Front 2065
Rear 1860
Overhang(mm)
Front 1460
Rear 2100
1940 + 5010 + 1350
Wheel Track(mm)
Front 2065
Rear 1860
Overhang(mm)
Front 1460
Rear 2100
Wheel Base(mm)
1940 + 5300 + 1350
Wheel Track(mm)
Front 2065
Rear 1860
Overhang(mm)
Front 1460
Rear 2100
1940 + 5300 + 1350
Wheel Track(mm)
Front 2065
Rear 1860
Overhang(mm)
Front 1460
Rear 2100
Weight (kg)
Permissible Loading Capacity
24 000
Design GVW
41 000
24 000
Design GVW
41 000
Permissible Loading Capacity
30 000
Design GVW
41 000
30 000
Design GVW
41 000
Permissible Loading Capacity
30 000
Design GVW
41 000
30 000
Design GVW
41 000
Engine
HINO Engine P11C Diesel Euro III
Four stroke direct injection diesel engine. Six cylinder in-line with water cooling turbocharging and intercolling.
Model
P11C-UJ
Maximun Output
350Hp (254kw) at 2100 rpm
Maximun Torque
1460 Nm at 1100 - 1300 rpm
Bore x Stroke(mm)
122 x 150
Engine Capacity
10 520 cm3
Compression Ratio
17:01
Four stroke direct injection diesel engine. Six cylinder in-line with water cooling turbocharging and intercolling.
Model
P11C-UJ
Maximun Output
350Hp (254kw) at 2100 rpm
Maximun Torque
1460 Nm at 1100 - 1300 rpm
Bore x Stroke(mm)
122 x 150
Engine Capacity
10 520 cm3
Compression Ratio
17:01
HINO Engine P11C Diesel Euro III
Four stroke direct injection diesel engine. Six cylinder in-line with water cooling turbocharging and intercolling.
Model
P11C-UR
Maximun Output
380Hp (275kw) at 2100 rpm
Maximun Torque
1618 Nm at 1100 - 1300 rpm
Bore x Stroke(mm)
122 x 150
Engine Capacity
10 520 cm3
Compression Ratio
17:01
Four stroke direct injection diesel engine. Six cylinder in-line with water cooling turbocharging and intercolling.
Model
P11C-UR
Maximun Output
380Hp (275kw) at 2100 rpm
Maximun Torque
1618 Nm at 1100 - 1300 rpm
Bore x Stroke(mm)
122 x 150
Engine Capacity
10 520 cm3
Compression Ratio
17:01
HINO Engine P11C Diesel Euro III
Four stroke direct injection diesel engine. Six cylinder in-line with water cooling turbocharging and intercolling.
Model
P11C-UJ
Maximun Output
350Hp (254kw) at 2100 rpm
Maximun Torque
1460 Nm at 1100 - 1300 rpm
Bore x Stroke(mm)
122 x 150
Engine Capacity
10 520 cm3
Compression Ratio
17:01
Four stroke direct injection diesel engine. Six cylinder in-line with water cooling turbocharging and intercolling.
Model
P11C-UJ
Maximun Output
350Hp (254kw) at 2100 rpm
Maximun Torque
1460 Nm at 1100 - 1300 rpm
Bore x Stroke(mm)
122 x 150
Engine Capacity
10 520 cm3
Compression Ratio
17:01
Transmission System
ZF––Mechanical Synchronizer CSHIFT 15.16,
Hydraulic Control
Number of Speed
9 Forward + 1 Reverse
Forward Gear (L/S)
15.16, 11.26, 7.90, 5.67, 4.07, 2.67, 1.94, 1.39, 1.00
Reverse Gear (L/S)
12.26
Differential
4.42
Rear Axle
Wheel Hub Reduction
Hydraulic Control
Number of Speed
9 Forward + 1 Reverse
Forward Gear (L/S)
15.16, 11.26, 7.90, 5.67, 4.07, 2.67, 1.94, 1.39, 1.00
Reverse Gear (L/S)
12.26
Differential
4.42
Rear Axle
Wheel Hub Reduction
ZF––Mechanical Synchronizer CSHIFT 15.16,
Hydraulic Control
Number of Speed
9 Forward + 1 Reverse
Forward Gear (L/S)
15.16, 11.26, 7.90, 5.67, 4.07, 2.67, 1.94, 1.39, 1.00
Reverse Gear (L/S)
12.26
Differential
4.42
Rear Axle
Wheel Hub Reduction
Hydraulic Control
Number of Speed
9 Forward + 1 Reverse
Forward Gear (L/S)
15.16, 11.26, 7.90, 5.67, 4.07, 2.67, 1.94, 1.39, 1.00
Reverse Gear (L/S)
12.26
Differential
4.42
Rear Axle
Wheel Hub Reduction
ZF––Mechanical Synchronizer CSHIFT 15.16,
Hydraulic Control
Number of Speed
9 Forward + 1 Reverse
Forward Gear (L/S)
15.16, 11.26, 7.90, 5.67, 4.07, 2.67, 1.94, 1.39, 1.00
Reverse Gear (L/S)
12.26
Differential
4.42
Rear Axle
Wheel Hub Reduction
Hydraulic Control
Number of Speed
9 Forward + 1 Reverse
Forward Gear (L/S)
15.16, 11.26, 7.90, 5.67, 4.07, 2.67, 1.94, 1.39, 1.00
Reverse Gear (L/S)
12.26
Differential
4.42
Rear Axle
Wheel Hub Reduction
Clutch
Hydraulic control with air assisted
Hydraulic control with air assisted
Hydraulic control with air assisted
Axle Type & Suspension System
Front
Stub axles with double T-Cross section
Rear
Wheel Hub Reduction
Suspensions
Front
Telescopic with tapered leaf spring 9 semi-elliptical
Rear
Tapered leaf spring 12 semi-elliptical
Stub axles with double T-Cross section
Rear
Wheel Hub Reduction
Suspensions
Front
Telescopic with tapered leaf spring 9 semi-elliptical
Rear
Tapered leaf spring 12 semi-elliptical
Front
Stub axles with double T-Cross section
Rear
Wheel Hub Reduction
Suspensions
Front
Telescopic with tapered leaf spring 9 semi-elliptical
Rear
Tapered leaf spring 12 semi-elliptical
Stub axles with double T-Cross section
Rear
Wheel Hub Reduction
Suspensions
Front
Telescopic with tapered leaf spring 9 semi-elliptical
Rear
Tapered leaf spring 12 semi-elliptical
Front
Stub axles with double T-Cross section
Rear
Wheel Hub Reduction
Suspensions
Front
Telescopic with tapered leaf spring 9 semi-elliptical
Rear
Tapered leaf spring 12 semi-elliptical
Stub axles with double T-Cross section
Rear
Wheel Hub Reduction
Suspensions
Front
Telescopic with tapered leaf spring 9 semi-elliptical
Rear
Tapered leaf spring 12 semi-elliptical
Chasssis
Parallel tapered channel section type
with reinforcements, stiffeners and cross
members (double layer)
Parallel tapered channel section type
with reinforcements, stiffeners and cross
members (double layer)
Parallel tapered channel section type
with reinforcements, stiffeners and cross
members (double layer)
Fuel Tank
Alluminium alloy fuel tank (380 litres) with locking fuel cap
Alluminium alloy fuel tank (380 litres) with locking fuel cap
Alluminium alloy fuel tank (380 litres) with locking fuel cap
Sterring
Hydraulic control with air assisted
Hydraulic control with air assisted
Hydraulic control with air assisted
Brakes
Service Brake
Full air brake, dual circuit
Parking
Spring actuator at rear wheels
Auxiliary
Engine exhaust brake
Full air brake, dual circuit
Parking
Spring actuator at rear wheels
Auxiliary
Engine exhaust brake
Service Brake
Full air brake, dual circuit
Parking
Spring actuator at rear wheels
Auxiliary
Engine exhaust brake
Full air brake, dual circuit
Parking
Spring actuator at rear wheels
Auxiliary
Engine exhaust brake
Service Brake
Full air brake, dual circuit
Parking
Spring actuator at rear wheels
Auxiliary
Engine exhaust brake
Full air brake, dual circuit
Parking
Spring actuator at rear wheels
Auxiliary
Engine exhaust brake
Wheels & Tyres
Rims
9R22.5
Tyres
11R22.5
Spare Wheel
One
9R22.5
Tyres
11R22.5
Spare Wheel
One
Rims
9R22.5
Tyres
11R22.5
Spare Wheel
One
9R22.5
Tyres
11R22.5
Spare Wheel
One
Rims
9R22.5
Tyres
11R22.5
Spare Wheel
One
9R22.5
Tyres
11R22.5
Spare Wheel
One
High Roof Sleeper Cabin
Steel cab hydraulically titable to the front with adjustable
driver‘s seat and rigid adjustable co-driver‘s, 3-arms
windscreen wiper syste, ventilation system with stereo radio/
MP3, sun visor and adjustable sterring wheel, air horn, single
berth complete with air conditioner and safety belt
Steel cab hydraulically titable to the front with adjustable
driver‘s seat and rigid adjustable co-driver‘s, 3-arms
windscreen wiper syste, ventilation system with stereo radio/
MP3, sun visor and adjustable sterring wheel, air horn, single
berth complete with air conditioner and safety belt
Steel cab hydraulically titable to the front with adjustable
driver‘s seat and rigid adjustable co-driver‘s, 3-arms
windscreen wiper syste, ventilation system with stereo radio/
MP3, sun visor and adjustable sterring wheel, air horn, single
berth complete with air conditioner and safety belt
Electrical System
Operating Voltage
24V Electromagnetic Starter
Batteries
2x12, 150Ah
Cigar Lighter, Horn, Headlamp, Fog Light, Reverse Lamp
24V Electromagnetic Starter
Batteries
2x12, 150Ah
Cigar Lighter, Horn, Headlamp, Fog Light, Reverse Lamp
Operating Voltage
24V Electromagnetic Starter
Batteries
2x12, 150Ah
Cigar Lighter, Horn, Headlamp, Fog Light, Reverse Lamp
24V Electromagnetic Starter
Batteries
2x12, 150Ah
Cigar Lighter, Horn, Headlamp, Fog Light, Reverse Lamp
Operating Voltage
24V Electromagnetic Starter
Batteries
2x12, 150Ah
Cigar Lighter, Horn, Headlamp, Fog Light, Reverse Lamp
24V Electromagnetic Starter
Batteries
2x12, 150Ah
Cigar Lighter, Horn, Headlamp, Fog Light, Reverse Lamp
Performance
Max Driving Speed(km/h)
110
Max Gradeability(%)
30
Max Ground Clearance(mm)
255
Max Turning Circle(m)
18
110
Max Gradeability(%)
30
Max Ground Clearance(mm)
255
Max Turning Circle(m)
18
Max Driving Speed(km/h)
110
Max Gradeability(%)
30
Max Ground Clearance(mm)
255
Max Turning Circle(m)
18
110
Max Gradeability(%)
30
Max Ground Clearance(mm)
255
Max Turning Circle(m)
18
Max Driving Speed(km/h)
110
Max Gradeability(%)
30
Max Ground Clearance(mm)
255
Max Turning Circle(m)
18
110
Max Gradeability(%)
30
Max Ground Clearance(mm)
255
Max Turning Circle(m)
18
Optional Upgrade
Engine
380hp P11C-UR
Maximun Output
380Hp (275kw) at 2100 rpm
Maximun Torque
1618 Nm at 1100 - 1300 rpm
Transmission System
High/Low 16 Speed
Differential
3.94
Tyres
295/80R22.5
380hp P11C-UR
Maximun Output
380Hp (275kw) at 2100 rpm
Maximun Torque
1618 Nm at 1100 - 1300 rpm
Transmission System
High/Low 16 Speed
Differential
3.94
Tyres
295/80R22.5
Engine
420hp ISMe 420-30
Maximun Output
420Hp (302kw) at 1900 rpm
Maximun Torque
1998 Nm at 1100 - 1300 rpm
Transmission System
High/Low 16 Speed
Differential
3.94
Tyres
295/80R22.5
420hp ISMe 420-30
Maximun Output
420Hp (302kw) at 1900 rpm
Maximun Torque
1998 Nm at 1100 - 1300 rpm
Transmission System
High/Low 16 Speed
Differential
3.94
Tyres
295/80R22.5
Engine
420hp ISMe 420-30
Maximun Output
420Hp (302kw) at 1900 rpm
Maximun Torque
1998 Nm at 1100 - 1300 rpm
Transmission System
High/Low 16 Speed
Differential
3.94
Tyres
295/80R22.5
420hp ISMe 420-30
Maximun Output
420Hp (302kw) at 1900 rpm
Maximun Torque
1998 Nm at 1100 - 1300 rpm
Transmission System
High/Low 16 Speed
Differential
3.94
Tyres
295/80R22.5
The manufacturer reserve the right of technical alterations/changes for better product improvement without prior notice
